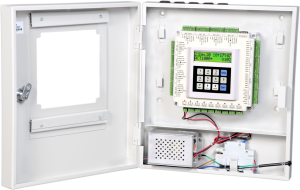

4 Door / 8 Reader Controller

In the present era of modernization, the concept of security has changed significantly. Earlier the need of security was not much emphasized. The Key factor responsible for such revolutionary change is the form in which information can be carried. Today a chip sized Pen drive can contain valuable information & is vulnerable for intelligent theft. An employee, who is not authorized to access the server room, may sneak through your eyes and can get hold of important data. It becomes virtually impossible to hold someone responsible for such act unless there is some mechanism to restrict the physical entry and to monitor the time spent within the premises. InstaID series ACT1000Plus Access Controller has been made flexible to control & monitor up to four doors simultaneously, thereby keeping the cost factor low without impairing its utility. Thus it is Simple, Powerful and Securely Affordable.

Key Features

4 Door / 8 Reader Controller

Supports access control of up to 4 doors in all respect including 4 entry readers, 4 exit readers, 4 locks, 4 exit switches etc.

Inbuilt RJ45 Network Interface

Leveraging on the merits of IP based systems; it can easily be hooked up on the existing TCP/IP network. Thus the data can be transferred instantaneously in real time mode to a centralized server.

Field Upgradable Firmware

Facility to onsite upgrade the firmware over Ethernet interface so that any customization or new version can be easily upgraded without any need of removing the device.

Protected Enclosure

Both controller & power supply unit are protected with suitable housing so that electronic circuit boards are not exposed to cause any accidental damage.

Anti Pass Back

Door wise antipassback. Entry to the particular door is allowed only when the employee has exited through the same door.

Door Interlocking

Facility of door interlocking is available. The system allows creating a group of doors such that access to a door within the group is allowed only when all the other doors are in closed condition.

Excellent Price Performance Ratio

With a lower price to performance ratio ROI is automatically enhanced, the factor contributing to higher ROI is not only very competitive pricing but also higher accuracy rate offered by the product.


Easy to install and configure

Embedded network interface for easy connectivity

Industry standard weigand input facilitates to connect with any readers

Cost saving

Specifications: Firmware

Controller 4 Doors / 8 Readers
CPU 8 Bit Microcontroller running at 42 MHz
Program Memory 512 KBytes
Data Memory 2 MBytes Flash & 256 KB Non Volatile RAM
Database 30,000 Card Holders
Transactions 55,000 time stamped events storage capacity
RTC Non Volatile Real Time Clock Calendar
Display 16 character x 2 line high contrast backlit LCD, LED indication for reader and lock activity status
Communication 10 Base-T RJ45 ethernet interface (TCP/IP) with status LED indications
Reader Interface Weigand configurable from 26 bits to 40 bits / Clock Data. Eight reader ports
Reader Control LED Control, Buzzer Control and Reader Tamper Switch Input
Lock Interface 4 Potential Free changeover relays, contact rating 3A/30VDC. Supports both fail safe and fail secure type of lock assemblies
Digital Inputs 1 input for exit switch, 1 input for door sensor and 1 general purpose programmable input.
Digital Ouput Optically isolated inputs for 4 Door Sensor, 4 Exit Switches and 8 General Purpose Digital Inputs
Watchdog Built-in watchdog supervisor
Supply Requirement 13.8 V DC / 5 Amp with batter charger. Provision to connect 12V/ 7.2 AH Battery
Protection Miniature Circuit Breaker (MCB) for over current protection
Power 4 Watts ( Excluding Locks and Readers )
Input 180 V AC ~ 230V AC/ 50 Hz
Humidity RH 5~95% Non-condensing
Weight 5.14 Kgs
Enclosure Rugged Aluminium die cast housing
Dimensions 36.2 cm ( L) x 32.5 cm (W) x 8.3 cm (D)

Specifications : Firmware

time zone 30 user defined time zones
access groups 90 access groups
day access day of the week access
week off groups 30 week off groups
holiday groups 10 holiday groups, 30 holidays per group
Anti pass back Door wise anti pass back
Interlocking Interlocking facility available
Digital Inputs Programmable general purpose digital inputs for monitoring devices and sensors
Digital Outputs Programmable general purpose digital outputs for alarms

Applications areas

Product Code : ACT1000

Description : Four door eight reader access controller
